3 Layer High Frequency PCB Built On 60mil RO4350B and 6.6mil RO4350B with ENIG for Wireless Booster

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Bicheng Enterprise Limited
[China]

Address
6-11C SHIDAI JINGYUAN,FUYONG,BAO'AN,SHENZHEN Shenzhen Guangdong
Phone
86-0755-27374946
Contact name
Bonnie Shi

Quick Information

  • Brand Name: Bicheng Enterprise Limited
  • Place of Origin: China
  • Model Number : BIC-0060-V0.2
  • Base Material : RO4350B
  • Board Thickness : 1.0mm
  • Copper Thickness : 1oz
  • Min. Hole Size : 0.25mm
  • Min. Line Spacing : 4.9mil
  • Min. Line Width : 5mil
  • Number of Layers : 3layer
  • Surface Finishing : ENIG
  • Solder Mask Color : Green
  • Colour of Component : White
  • Test : 100% Electrical Test

Description

3 Layer High Frequency PCB Built On 60mil RO4350B and 6.6mil RO4350B with ENIG for Wireless Booster

(PCB’s are custom-made products, the picture and parameters shown are just for reference)



Hi Everyone,

Multilayer high frequency PCBs are made from all high frequency material inclusive of prepreg adhesive. For example, a 4-layer RO4350B PCB is a compound of 2 cores of RO4350B substrates. As is known to all, there’re 8 cores in RO4350B family, i.e. 4mil (0.101mm) to 60mil (1.524mm).

RO4350B:


4mil

0.101mm

6.6mil

0.168mm

10mil

0.254mm

13.3mil

0.338mm

16.6mil

0.422mm

20mil

0.508mm

30mil

0.762mm

60mil

1.524mm

So it’s very interesting that stack-up of 4 layers can be done in many different ways.



This 3-Layer high frequency PCB is built on 2 cores of RO4350B and one layer of copper is etched off, left 3 layers on.

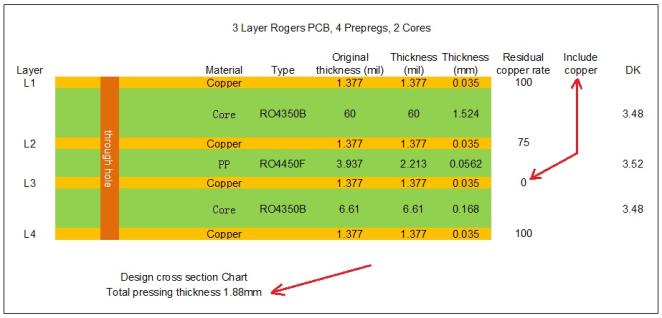

The structure is one sheet of 60mil RO4350B plus 4mil RO4450F prepreg and combined 6.6mil RO4350B. The board is a square with 110mm x 110mm, with immersion gold finishes on pads. They’re 20 pieces packed for shipment and used for wireless booster.

Following is the actual value in engineering manufacture.



Features and benefits

1) Excellent high frequency performance due to low dielectric tolerance and loss;

2) Reducing signal loss in high frequency application meets the development needs of communication technology;

3) Professional and experienced engineers check your production files

4) Hassle-free, one-to-one after-sales service;

5) UL, ISO14001, IAFT16949 certified factory.



Applications

Amplifier, Antenna combiner, Frequency converter, Trunk amplifier, RF module, Power splitter, Low Noise Block, 4G antenna





Parameter and data sheet



PCB SIZE 110 x 110mm=1PCS
BOARD TYPE Multilayer PCB
Number of Layers 3 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35 µ m(1 oz)+plate TOP layer
RO4350B 60mil (1.524mm)
copper ------- 35µm
Prepreg RO4450F 4mil (0.102mm)
copper ------- 0µm
RO4350B 6.6mil (0.167mm)
copper ------- 35µm(1oz) + plate  BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 4 mil
Minimum / Maximum Holes: 0.4 mm / 3.5 mm
Number of Different Holes: 12
Number of Drill Holes: 124
Number of Milled Slots: 0
Number of Internal Cutouts: NO
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy:   RO4350B Tg280 , er<3.48, Rogers Corp
Final foil external:  1 oz
Final foil internal:  1 oz
Final height of PCB:  1.88 mm ±10%
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To:  N/A
Solder Mask Color:  N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo:  N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:    0.0059"
Board plating: 0.0029"
Drill tolerance:   0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

Our Quality Policy

Bicheng has developed series of management procedures and approaches to assure that PCBs are in compliance with the customers' requirements, inclusive of selection of the vendors, work in progress (WIP) inspection, outgoing delivery inspection and customer service etc.



Evaluation and Audit of Suppliers

Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers every year to guarantee the materials supplied are meeting Bicheng’s requirements. Furthermore, Bicheng continuously develop suppliers and supervise them to improve their quality and environment management basing on the systems of ISO9001 & ISO14001.



Contract Evaluation

Bicheng shall review and verify customer's requirements to make sure that we have the capability to satisfy customers' requirements including specifications, delivery and other demands prior to accepting an order.



Making, audit and control of manufacturing data.

When customers' design data and specifications are provided to our market department, Bicheng has to verify all the requirements. Then, convert the design data into manufacturing data by CAM. Finally, a manufacturing instruction (MI) is generated according to the real manufacturing process and technologies for manufacturing department as the basis for actual fabrication. MI must be reviewed by independent engineers and QA engineers before issue.



Incoming Material Quality Control

All materials have to be inspected before warehousing. We established a series of strict inspection procedure and instruction to control the incoming materials. Furthermore, various precise inspecting instruments and apparatus guarantee the capability to judge the material good or not. We issue material with first in first out principle, and give out “alarm” for the material that will reach the shelf life to ensure the materials are used up before expiry.



Control of Production Process

Right manufacturing instruction (MI), comprehensive equipment management and maintenance and process control, strict WIP inspection and monitoring as well as working instruction, all those make the whole fabrication process totally controlled.



Final Control and Inspection

All PCBs have to be gone through the open and short test as well as visual inspection after passed the specified physical tests. We own various advanced test equipment including customized, probe flying test machines to guarantee that each PCB is 100% tested.



Product Delivery Audit

We set up a dedicated FQA department to inspect the PCB products according to the customer's specifications and requirements by sampling. Qualified PCBs are going to be packed.



FQA also has to carry out a 100% audit of the warehouse packing and shipping products, including product number, customer number, product quantity, shipping address and so on prior to shipment.



Customer Service

We sets up a professional customer service team to proactively communicate with customers and timely deal with the customers' feedbacks. We highly focus on customers' needs and to understand customers’ demands, timely to adjust the policy of customer service and PCB product requirements.



Certificates

  • UL : E251497

Price

  • Delivery Port : Hongkong

Packaging & Delivery

  • Packing :Vacuum
  • Packaging Size : 36 x 36 x 25  Centimeters
  • Package Weight : 10  Kilograms
  • Delivery Lead Time : 15 working days
  • Supply Ability : 45000 pieces per month
